Donaldson
Bulk Storage Fuel Tank Kit 10 Micron for Tanks Gravity Fed SAE-20 Ports X900133
Make 4x interest-free
payments of
$84.80 AUD
fortnightly
MORE INFO
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments
MORE INFO
- SKU:
- X900133
- UPC:
- 742330238516
- Condition:
- New
- Weight:
- 3.80 KGS
- Shipping:
- Calculated at Checkout
X900133 Bulk Fuel Tank Kit 10 Micron
Suitable for Tanks with SAE-20 Ports, gravity fed or low pressure overhead and portable tanks.
Ideal for all low flow applications up to 220lpm
Maximum working pressure: 150 psi (10.3 bar) / SAE-20 Port
The filter in this kit is manufactured with water absorbing media designed to filter particles 10um (micron) @ b200, providing you with added protection against particulate and water contamination in your fuel. To reduce the stress on the tank pipework, we recommend using a mounting bracket to support the filter assembly. Mounting bracket (P506158) is an offset design to allow for either Left or Right hand side mounting, with the bracket leg in either up or down orientation, whichever works best for your installation. The offset allows clearance for the pressure gauge.
Kit contents:
1x P576565 Filter Head Port Size SAE-20

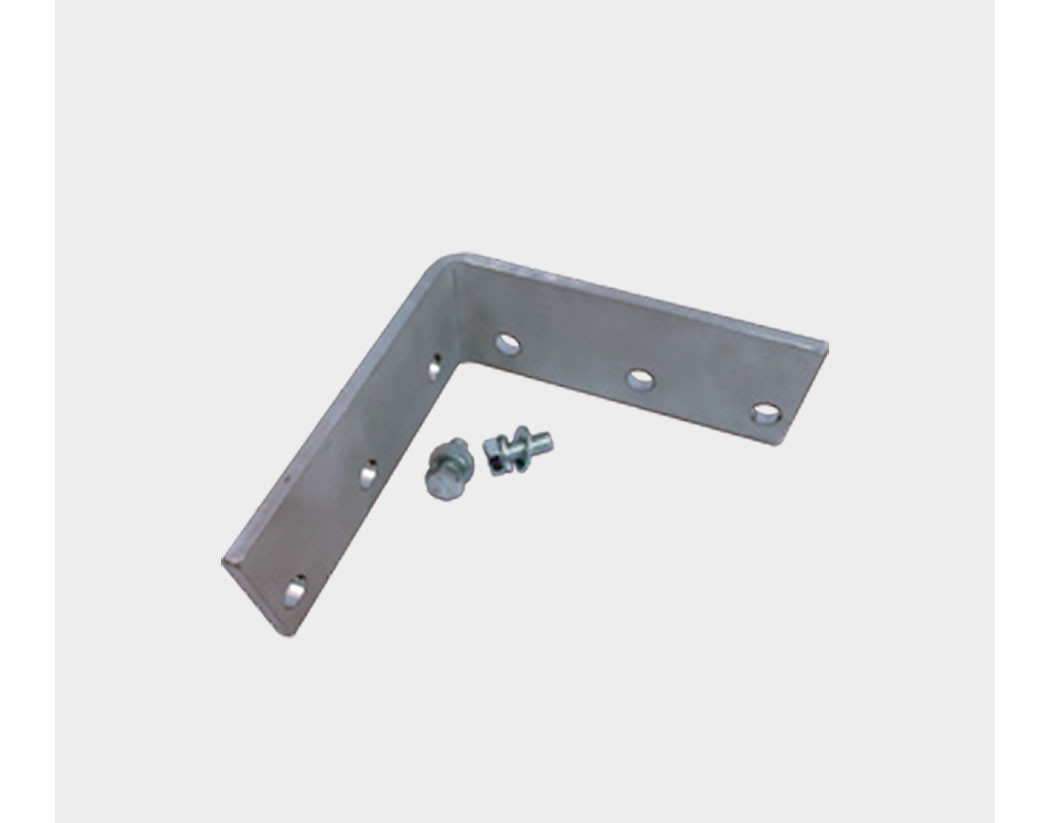

1x P506158 Head Assembly Bracket
Length: 140mm / Width: 50mm / Height: 140mm
1x P579716 Pressure Gauge
If used on suction side of pump gauge measures filter restriction. Not required in gravity fed applications
1x P574959 Fuel Filter
Package Dimensions: OD 128mm, Length 270.8mm
Efficiency: 10 = 100 (99.95% @ 10 micron)
With water absorbing media
1x P566151 T.R.A.P. Breather
1” NPT male thread
Package Dimensions: OD 114.3mm, Height 115mm
Efficiency: 3 = 50 (98% @ 3 micron)s
The ideal solution for overhead and portable tanks !
Contaminated diesel can cause equipment downtime and costly repairs. One of the most common sources for contaminant is the diesel storage tank. Many sites have aging bulk and portable fuel tanks with obsolete or non-existent filtration, and poor quality breathers. Donaldson’s Bulk Fuel Tank Kit contains all of the necessary components to upgrade existing fuel tanks with modern filtration technology.
Read the The Kit Installation Guide >
Read about Bulk Filter Kits >
Donaldson Fuel Filter Kits for Engines & Bulk Tanks >
