Replacement Bowl Seal Kit 30448 for Fuel Manager suits FM100 Series

3 reviews Write a Review
$25.00

Afterpay Terms & Conditions
Make 4x interest-free
payments of
$6.25 AUD fortnightly
MORE INFO

ZipPay Terms & Conditions
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments
MORE INFO


SKU:
30448
Condition:
New
Weight:
0.25 KGS
Shipping:
Calculated at Checkout
Replacement Bowl Seal Kit 30448 for Fuel Manager suits FM100 Series
$25.00

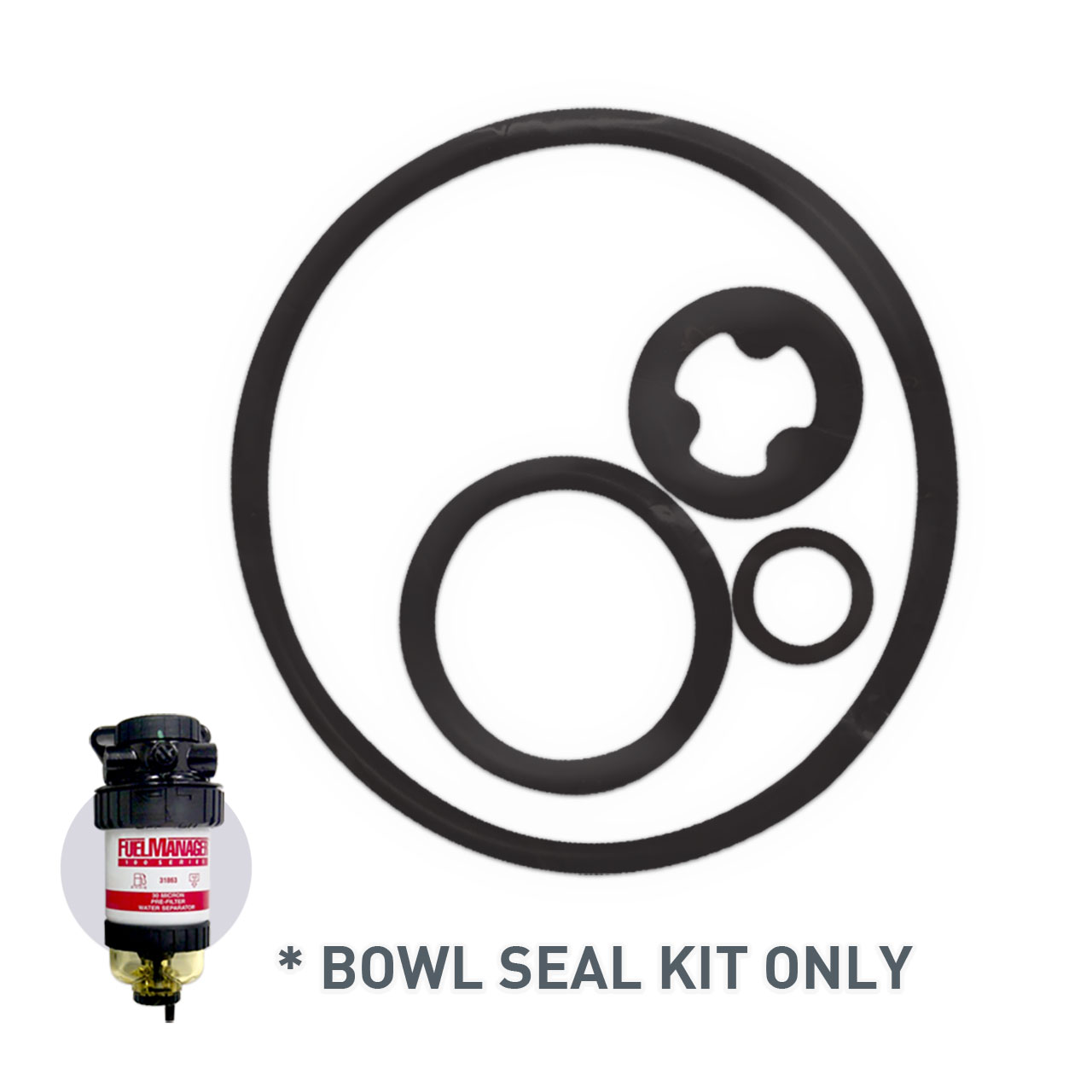

Replacement Bowl Seal Kit 30448 for Fuel Manager suits FM100 Series
* Image ONLY for representational purposes

Fuel Manager diesel fuel filter/water separator systems are used globally in a wide variety of diesel engine powered applications. As a modular system, optional Fuel Manager features can be selected to address specific operating requirements. This versatility allows the user to have the optimum fuel system filtration combined with exceptional economy. All Fuel Manager elements are fuel/water separators with provisions for draining coalesced water. Systems are for use with diesel fuel and bio-blended diesel fuel, and are not for use with gasoline or other volatile fuels.

Bowl Seal Kit Includes:
:: O-Ring - Filter element to water collection bowl header (crossRef: 10519)
:: Sealing Washer - Three "Lobed" seal for all plastic drain valves (crossRef: 32010)
:: O-Ring - Water collection bowl to water collection bowl header (crossRef: 31498)
:: O-Ring - Collection bowl draw bolt (crossRef: 30911)


Please Note: We are based in Australia.
For International Customers, please email us for a Freight Quote.
Online Sales: jason@westernfilters.com.au

If unsure of the part's Vehicle Application & Fitment:
Find Your 'Vehicle' using our Parts Finder / REGO Search Widget
Click this LINK: Find My Vehicle/ REGO Search

  • Fuel Manager Seal Kit
    5

    Posted by Matt on 20 / 6 / 2023

    Great kit has every thing you need, as always exceptional service from Western Filters.

  • FM100 O'ring gasket kit
    5

    Posted by Sharp on 12 / 9 / 2022

    I always replace O'rings when changing out the filter, keep old ones as spares if in good condition just incase. I find it's best to use a tiny smidge of rubber grease on the gaskets prior installing to reducing binding up

  • FM100 Water Catcher Bowl Seal Kit
    4

    Posted by Reg Nobbs on 25 / 7 / 2022

    Promptly delivered and as shown in the picture. Some description or direction on where the parts go would be helpful as the schematic showing the FM100 doesn't clearly layout each seals position.
