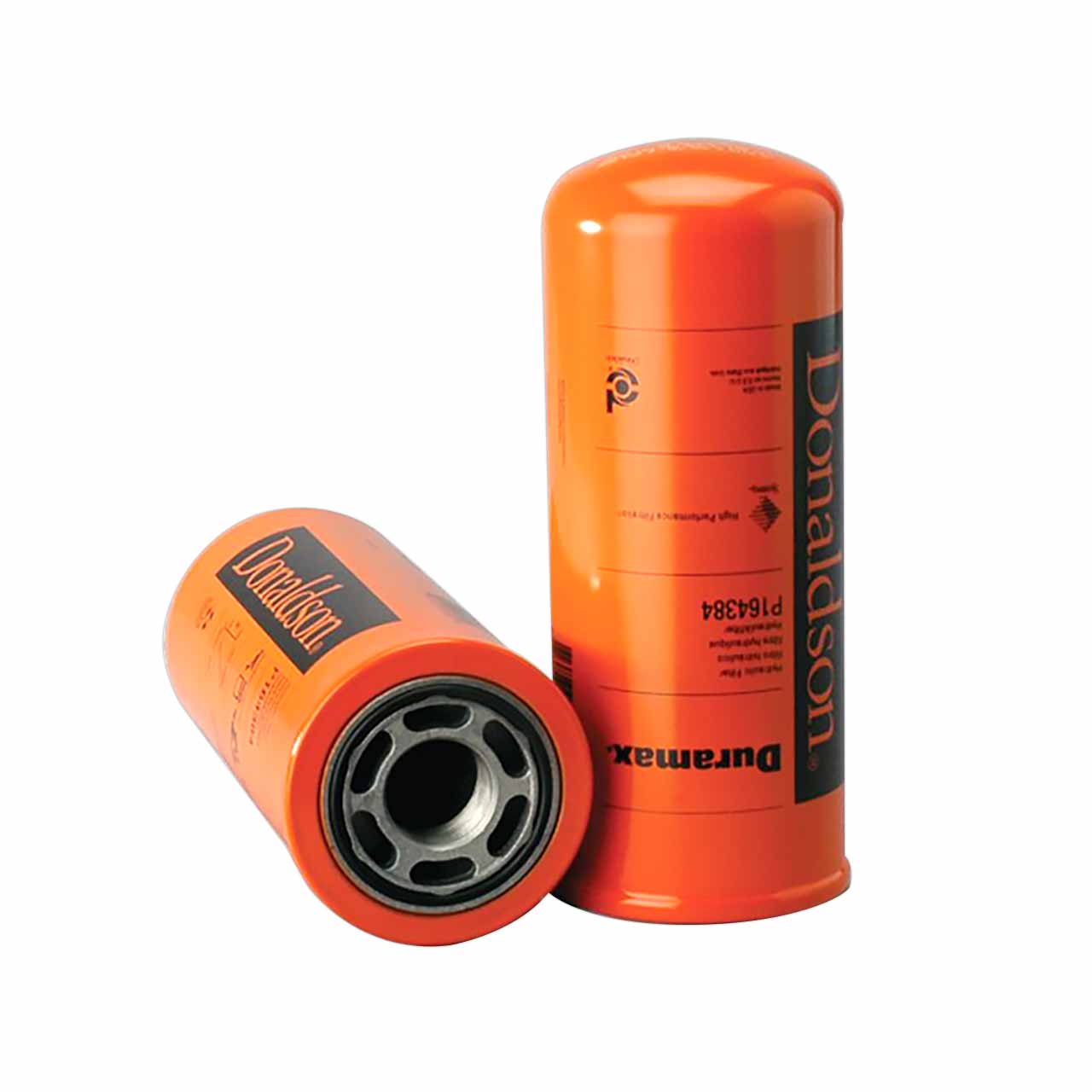

P164384 Hydraulic Filter Spin-On Duramax for Atlas Copco Bobcat International John Deere New Holland

No reviews yet Write a Review
$111.00

Afterpay Terms & Conditions
Make 4x interest-free
payments of
$27.75 AUD fortnightly
MORE INFO

ZipPay Terms & Conditions
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments
MORE INFO


SKU:
P164384
UPC:
742330016206
Condition:
New
Weight:
1.20 KGS
Shipping:
Calculated at Checkout
P164384 Hydraulic Filter Spin-On Duramax for Atlas Copco Bobcat International John Deere New Holland
$111.00

P164378 Donaldson Hydraulic Filter, Spin-On Duramax for:
Case/Case IH, Caterpillar, Claas, Doosan, GEHL, John Deere, others

Cross Reference:
Atlas Copco 371975, 9772040094 / Bobcat 6631705 / Bomag 53531235 / Case/Case IH 132575302 / Caterpillar 1664647 / Claas 05127431 / Clark 110366077 / Daewoo 54749040 / Ditch Witch 084230 / Doosana

P164374 Donaldson Hydraulic Filter, Spin-On Duramax for:
Atlas Copco, Bobcat, Case International, John Deere, New Holland

Cross Reference:
Atlas Copco 1604694401 / Bobcat 6598903 / Case/Case IH 1272063X1 / Caterpillar 0870895 / Clark 2394166 / Dynapac 359552 / Fiat 73144499 / Ford 9576P163324 / Freightliner DNP163324 / GEHL 346109074830 / JCB 32910601 / John Deere 842808800 / Kawasaki 3098170080 / Kobelco KL3098170200 / Komatsu 1281327H1 / Massey Ferguson 3515328M91 / New Holland 75267485 / Terex 3515328M92

Specifications:
Outer Diameter 97mm (3.82 inch)
Thread Size 1 3/8-12 UN
Length 239.78mm (9.44 inch)
Gasket OD 70mm (2.76 inch)
Gasket ID 63mm (2.48 inch)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Efficiency Test Std ISO 16889
Style Spin-On
Series HMK04/24
Brand Duramax
Media Type Synthetic

Package Dimensions:
Gross Length 4" (10.2cm)
Gross Width 4" (10.2cm)
Gross Height 9.6" (24.4cm)
Gross Weight 2.75lb (1.2kg)

Donaldson Hydraulic Filters
Donaldson have the right filters, contamination control products and capabilities to protect machinery and components in hundreds of applications – in the factory and on heavy-duty equipment. When you need hydraulic filtration, turn to Donaldson. We offer a complete line of filters and cartridges for low, medium and high pressure applications. Each is also available in a range of media efficiencies to meet specific application requirements.

K1022788 / Ford 9576P163555 / GEHL 074830 / JCB 32909200 / John Deere 4160174 / Mack 106SK13 / Manitou 906694Mack 106SK13 / Mercedes Benz A4370940004 / New Holland 464121 / Vermeer 73113001 / Volvo 11036607

Specifications:
Outer Diameter 97mm (3.82 inch)
Thread Size 1 3/8-12 UN
Length 239.78mm (9.44 inch)
Gasket OD 70mm (2.76 inch)
Gasket ID 63mm (2.48 inch)
Efficiency Beta 2 4 micron
Efficiency Beta 1000 11 micron
Efficiency Test Std ISO 16889
Style Spin-On
Series HMK04/24
Brand Duramax
Media Type Synteq XP

Package Dimensions:
Gross Length 4.1" (10.4cm)
Gross Width 4.1" (10.4cm)
Gross Height 9.8" (24.9cm)
Gross Weight 2.8lb (1.3kg)

Donaldson Hydraulic Filters
Donaldson have the right filters, contamination control products and capabilities to protect machinery and components in hundreds of applications – in the factory and on heavy-duty equipment. When you need hydraulic filtration, turn to Donaldson. We offer a complete line of filters and cartridges for low, medium and high pressure applications. Each is also available in a range of media efficiencies to meet specific application requirements.
