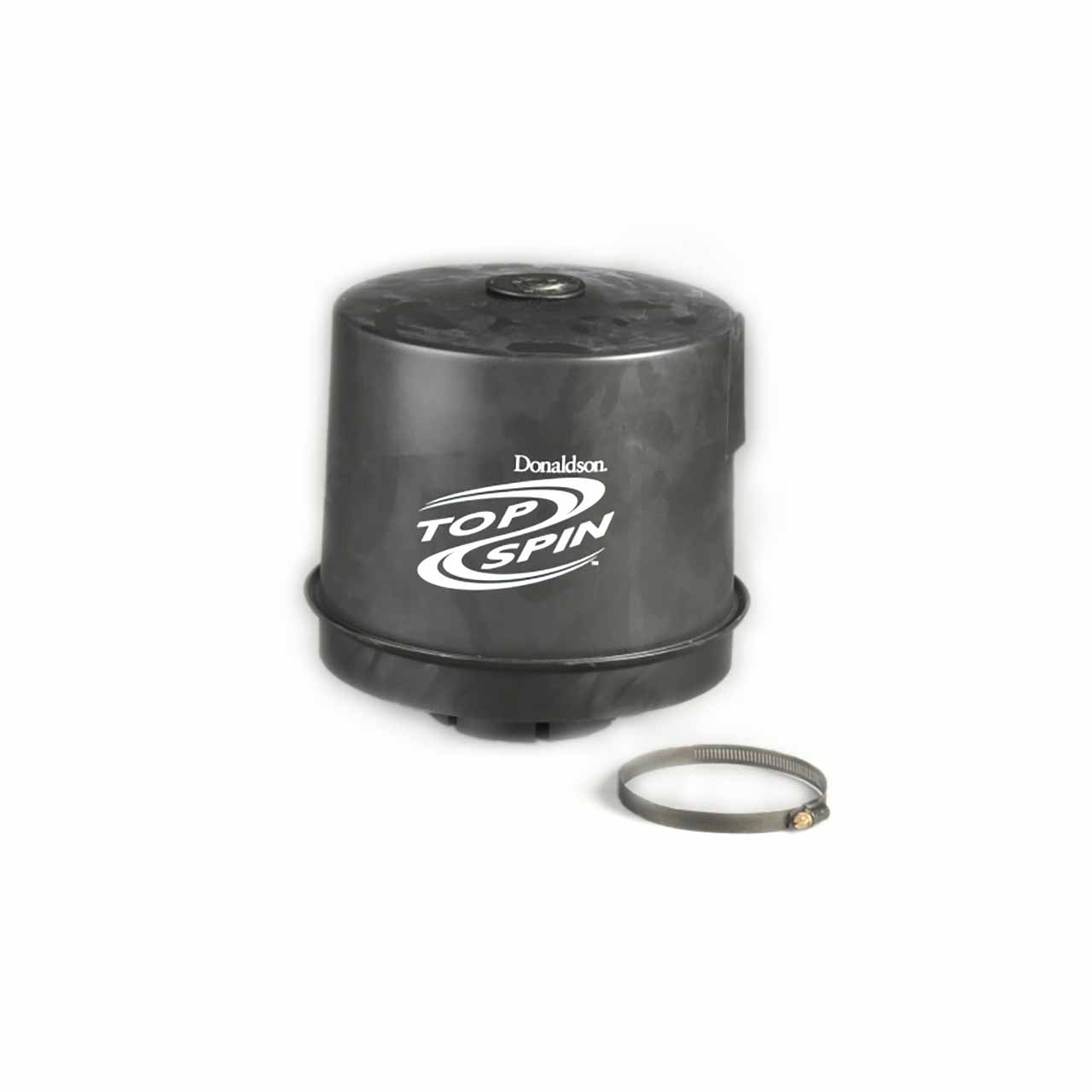

Donaldson TopSpin Pre-Cleaner H002432 - Extends Air Filter Life (H002044 Upgrade)
$479.00

Donaldson TopSpin Pre-Cleaner H002432 (H002044 Upgrade)
Extends the air Filter Life and Boosts System Efficiency. If your vehicle already has a pre-cleaner, you obviously recognize its importance. A pre-cleaner will extend the life of your air filter and reduce overall operating costs. Donaldson TopSpin will separate a greater amount of debris and contaminant compared to competitive products.

Attributes:
Height: 287mm (11.30 inch)
Body Diam Max: 287.53mm (11.32 inch)
Outlet ID: 115.82mm (4.56 inch)
Efficiency: 85
Efficiency: Test Std: ISO 5011, SAE J726
Rated Flow LR: 12.7m³/min (448 cfm)
Rated Flow HR: 24.1m³/min (851 cfm)
Restriction LR 25cmm H2O (0.98 inch H2O)
Restriction HR: 76mm H2O (2.99 inch H2O)

NMFC: 156600-04
HTS: 8421190020
UPC: 74233016541

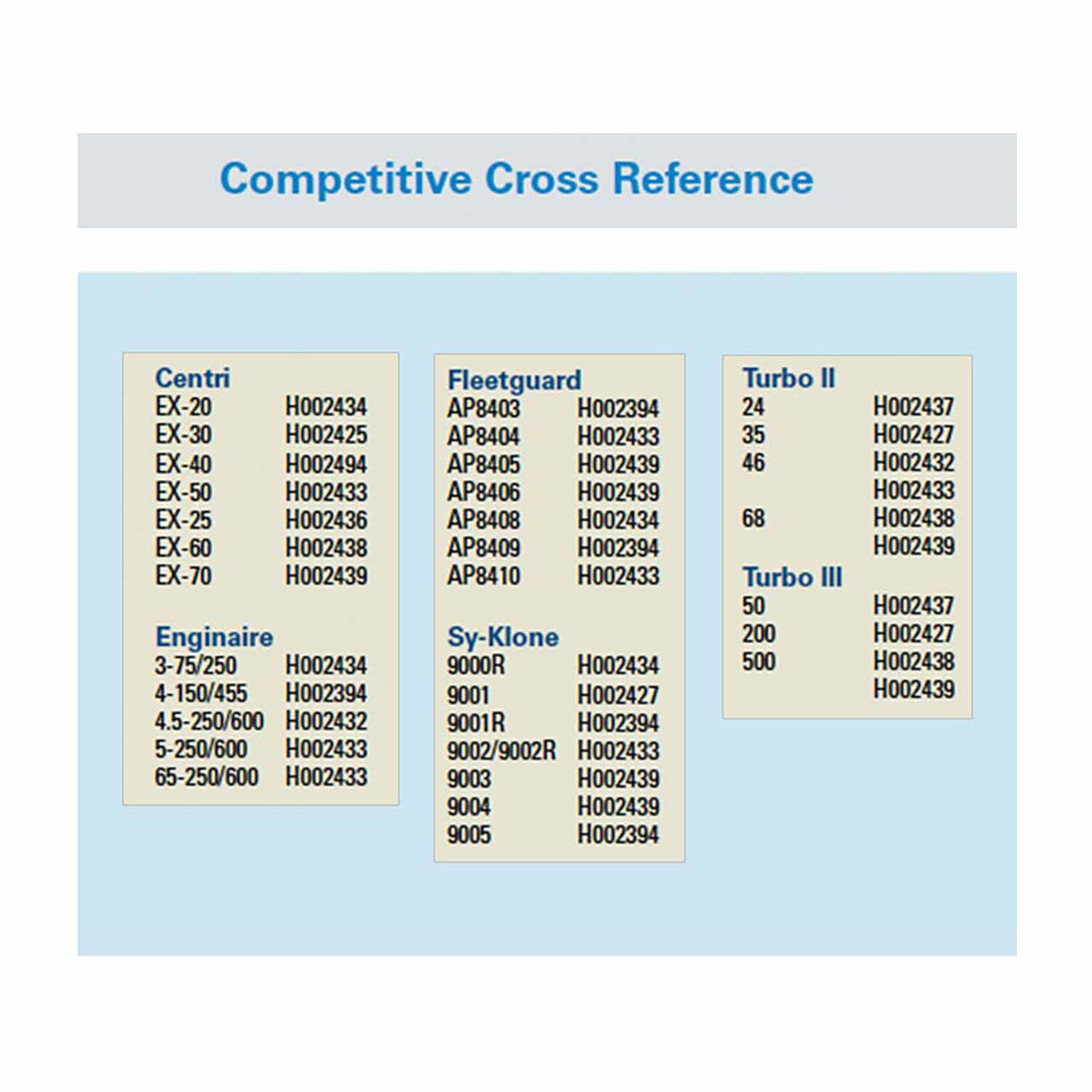

Cross Reference:
RAMA MOTORI JPBH002432 / RENAULT VI 5002006086 / SAME 242392900

Features & Benefits:
:: Separates up to 85% of incoming contaminant (per ISO 5011/SAE J726)
- Greatly extends air filter life Reduces air filter usage Lowers cost per operating hour.
- Automatically ejects mixed debris Separates more than 99% of particles 20 micron and larger
:: Dual mounted bearings - More robust design - Extends bearing life
:: Operates at a lower RPM - Less noise - Longer bearing life - Lower restriction
:: Self-cleaning/self-scavenging - No maintenance to clean bowl - No exhaust ejector required
:: Easy installation - Quick installation - One clamp to tighten - No wires or power requirements
:: Lighter weight - Lighter than competitive pre-cleaners - Lighter than Donaldson full-view pre-cleaner

View TopSpin Brochure >


Performance Curves:
The Donaldson TopSpin pre-cleaner has the lowest restriction of any competitive brands tested, including our own full-view pre-cleaner. Multiple tests conducted per ISO 5011/SAE J726 and average results are shown in charts below.
