RETURNS ACCEPTED - Must be as NEW & in packaging
0.00 AUD
Western Filters

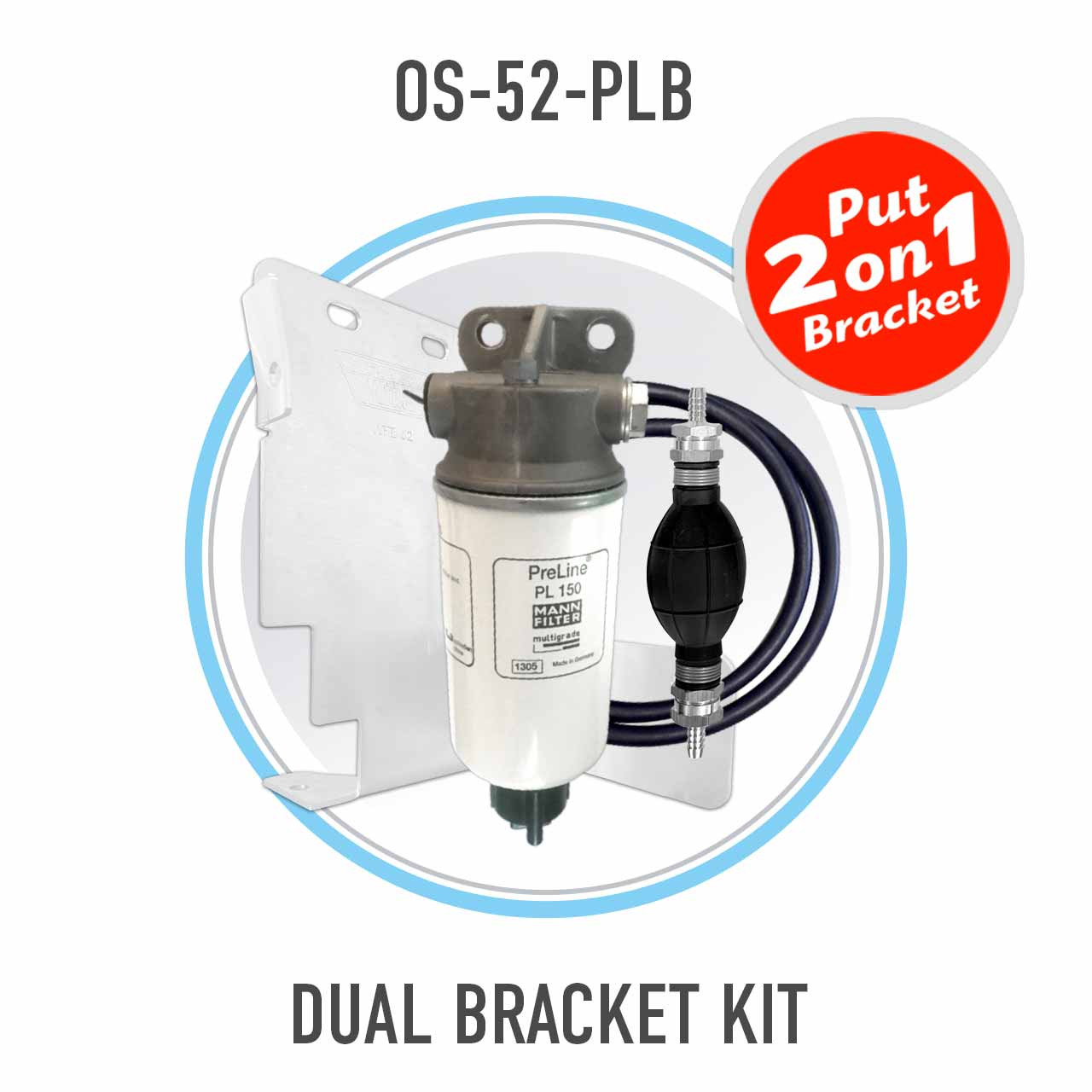

2023-on Toyota Landcruiser 70 Series 2.8L Turbo Diesel 4Cyl. GDJL79R 1GD-FTV Mann PreLine Pre-Filter DUAL Bracket Kit OS-52-PLB
Make 4x interest-free
payments of
$162.50 AUD
fortnightly
MORE INFO
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments
MORE INFO
- SKU:
- OS-52-PLB
- UPC:
- 796548215272
- Condition:
- New
- Weight:
- 5.00 KGS
- Shipping:
- Calculated at Checkout
- fbt-product:
- /2023-on-toyota-landcruiser-70-series-2-8l-provent-catch-can-dual-bracket-kit-os-prov-52b/
- fbt-product 2:
- /mann-hummel-replacement-element-lc-5001-2x-for-provent-200-iv-element-only/
- fbt-product 3:
- /direction-plus-preline-water-sensor-replacement/
Mann PreLine Pre-Filter DUAL Bracket Kit OS-52 PLB suits: Please Note: We are based in Australia.
2023-on Toyota Landcruiser 70 Series
2.8L Turbo Diesel 4Cyl. GDJL79R 1GD-FTV
** Add a Provent & a Drain Hose Kit
Bracket can fit both PreLine and a ProVent 200

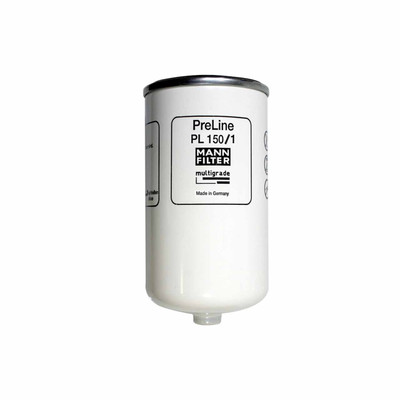

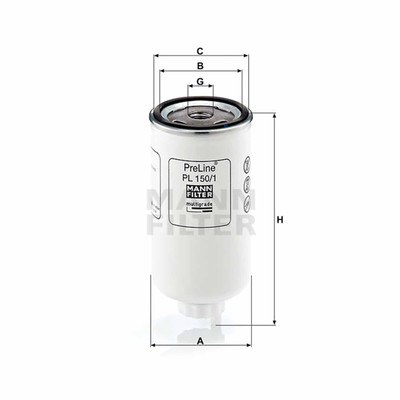

PreLine 150 Specifications:
Comes with a Single Head offering variable connection possibilities Robust design in different sizes Designed for easy servicing Spin-on filter, Head Connection Thread: M16 x 1.5, Head Length: 163mm / Head Outr.Diam: 76mm, Spin-on Filter: PL 150 / Nominal Flow Rate: 150, Water Separation: >93%, Operating Pressure: 4, Dimensions: 98 x 102 x 247mm
MANN+HUMMEL PreLine Protection System for Diesel Injection
Modern diesel engines use a higher injection pressure due to advanced performance requirements. Not only dirt particles but also water droplets have a direct effect on components of the injection system. This is particularly important for modern common rail systems, which place high demands on fuel quality. The injection systems used have very high requirements regarding cleanliness of the fuel. This means the fuel should contain hardly any particles and practically no water (condensate). Fuel Pre-Filters from MANN+HUMMEL reduce the level of contamination of the fuel with water even before the feed pump in the low-pressure circuit, thus reliably protecting the injection system. MANN+HUMMEL uses high performance multigrade media for the filtration of the fuel.
Main Features & Advantages:
The PreLine system protects the feed pump against ingress of water and coarse particles and extends the service life of the main filter. The PreLine series separates more than 93 % according to ISO/TR 16 332 of water present in the fuel and so fulfils the requirements of leading injection system producers.
:: Water separation :: Separation of coarse particles
:: Extended service life for the main filter
:: Use with diesel fuel DIN ISO 590 (5 % FAME) DIN 51 628 (7 % FAME) Kerosene JET-A1
:: Up to 100 or 150 l/h volume flow rate
:: Use of multigrade high performance media
:: 93 % water separation
:: Modular system with excellent flexibility
:: Easy to service
:: Integrated, effective and easy to handle hand pump with 45° position to drain off water and for priming during service
:: Integrated water collector
:: Parallel operation possible with a number of systems
:: PreLine 100/2 as a combined Pre-Filter and main filter usable in applications where installation space is critical
WF Install Guide: OS-52-PLB Mann PreLine Pre-Filter DUAL Bracket Kit
For additional Information: MANN PreLine 150 >
