Parker Racor
2 Micron Turbine Fuel Filter Water Separator with Clear Plastic Bowl - Racor 500FG2 Turbine Series
Make 4x interest-free
payments of
$172.25 AUD
fortnightly
MORE INFO
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments
MORE INFO
- SKU:
- 500FG2
- Condition:
- New
- Weight:
- 3.00 KGS
- Shipping:
- Calculated at Checkout

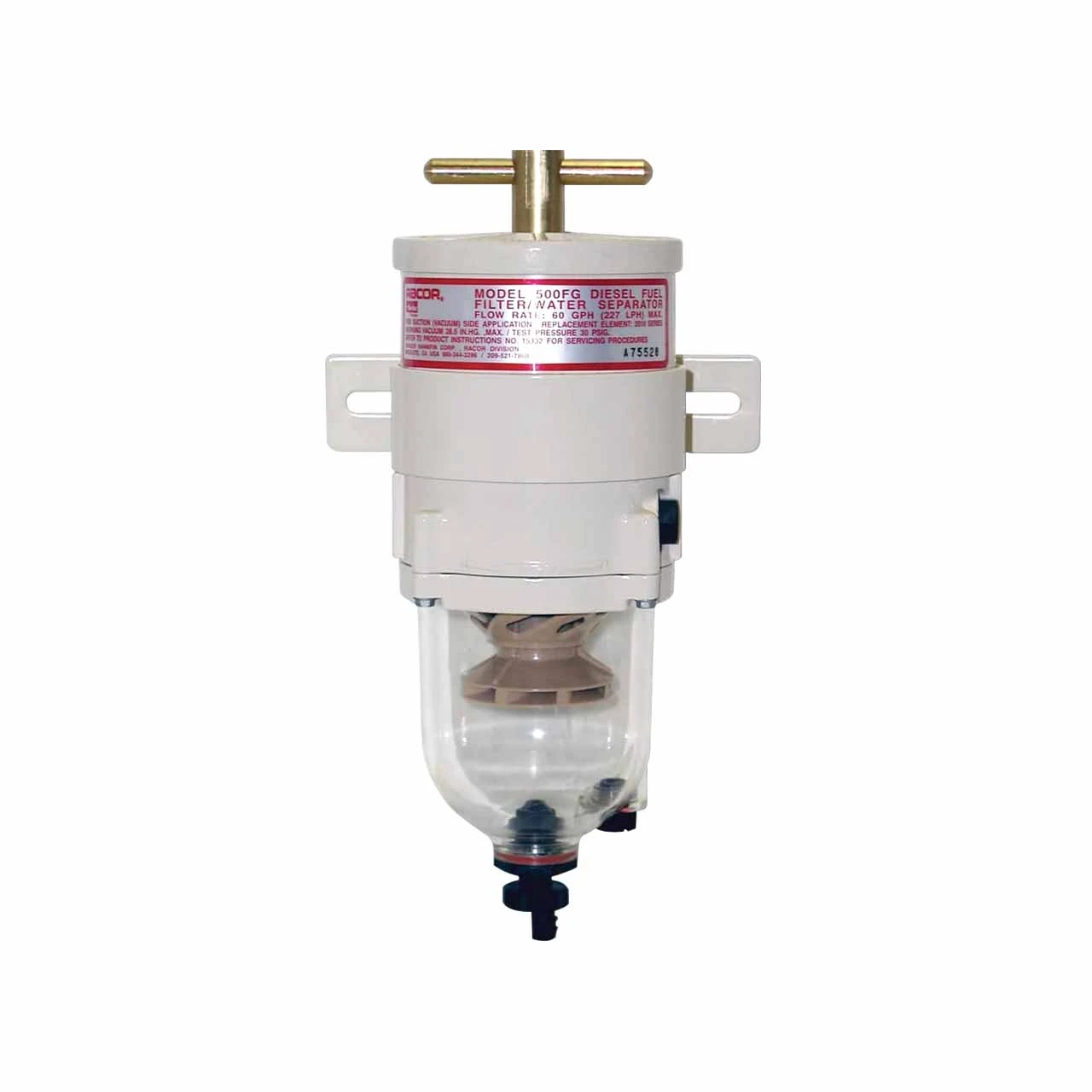

2 Micron Turbine Fuel Filter Water Separator with Clear Plastic Bowl
Racor Turbine Series 500FG2 (98%@2 Micron) 3/4-16 UNF-2B SAE Female Threads
The Parker Racor Fuel Filter Water Separator Turbine Series is the most trusted line of fuel filter water separators on the market. The assembly’s three-stage filtration system effectively removes water and particulates from fuel, providing maximum protection of diesel engine components in applications where reliability is critical. For optimal performance, Turbine Series filter assemblies should be installed on the vacuum side of the fuel transfer pump. They remove contaminates from fuel using the following three-stage process:
Stage One - Water Separation: As fuel enters the filter assembly, it moves through the centrifuge and spins off large solids and water droplets, which fall to the bottom of the collection bowl.
Stage Two - Coalescing: Small water droplets bead-up on the surface of the conical baffle and cartridge element. When heavy enough, they fall to the bottom of the bowl.
Stage Three - Filtration: Proprietary Aquabloc cartridge stops and captures fine hard and soft contaminants, while remaining water coalesces on the media surface. The coalesced water gathers into larger drops that then fall down into the clear collection bowl.
Applications: Diesel and Biodiesel Engines
Industries: Agriculture :: Construction :: Power Generation :: Oil and Gas
Features, Benefits & Technical Specifications:
Racor Industrial Turbine/ Cartridge Series FF/WS - For Fluid Type: Diesel Fuel / B20
Flow Rate: 60 gph / 227 lph - Port Size: 3/4-16 UNF-2B SAE Female
Aquabloc engineered media elements with 98% efficiency at 4, 10 or 30 micron
:: Various flow rates available: 60 gph (227 lpm) with a single 500FG Series, up to 540 gph (2044) with the 77 and 791000 series triple-manifold units
:: Corrosion-resistant construction
:: Self-venting drain valve or plug (on metal bowls)
:: Clear contaminant collection bowl
:: Clear Plastic Bowl :: Single Housing
:: No Valve or Heater :: Bracket Included
Racor Turbine Series - Micron Ratings:
:: 30 micron (98%@30 microns) 500FG30
- Ideally suited as a pre-filter to protect downstream filters from excessive contamination. Extends the life of on engine filters. Micron Rating: 98% @ 30 Micron / Replacement Element: 2010PM
:: 10 micron (98%@10 microns) 500FG10
- Captures more contaminants than 30 micron elements, and more effective at stopping water. Extends the life of the entire fuel system. Most popular choice. Micron Rating: 98% @ 10 Micron / Replacement Element: 2010TM
:: 2 micron (98% @2 microns) 500FG2
– Maximum water removal and filtration, capable of protecting all modern injection systems while greatly extending the life of difficult-to-service on-engine filters. Micron Rating: 98% @ 2 Micron / Replacement Element: 2010SM
Racor 2010 Replacement Elements: SM: 2 microns / TM: 10 mic / PM: 30 mic
Purchase Racor 500FG Servicing Seal Kit >
